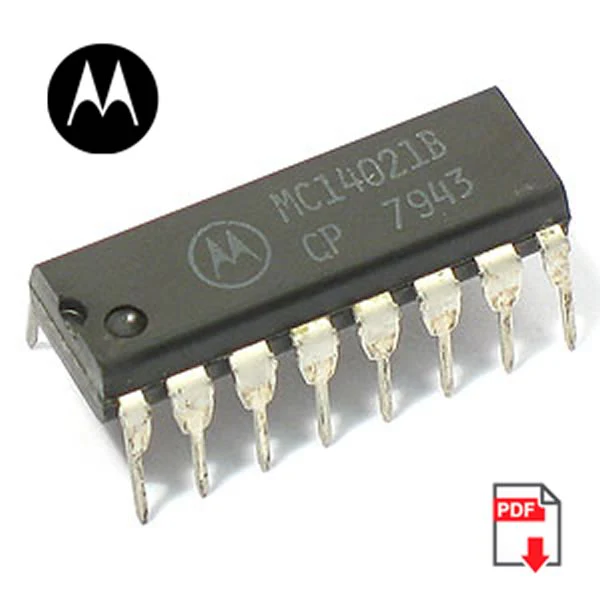

A20537 - MC14021BCP 8-Bit Static Shift Register (Motorola)
The MC14021BCP 8-bit static shift register is constructed with MOS P-channel and N-channel enhancement mode devices in a single monolithic structure. These shift registers find primary use in parallel-to-serial data conversion, synchronous and asynchronous parallel input, serial output data queueing; and other general purpose register applications requiring low power and/or high noise immunity.
Features:
Asynchronous Parallel Input/Serial Output
Synchronous Serial Input/Serial Output
Full Static Operation
"Q" Outputs from Sixth, Seventh, and Eighth Stages
Double Diode Input Protection
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
Pin-for-Pin Replacement for CD4021B
16 pin DIP. Manufactured by Motorola. A20537
Features:
Asynchronous Parallel Input/Serial Output
Synchronous Serial Input/Serial Output
Full Static Operation
"Q" Outputs from Sixth, Seventh, and Eighth Stages
Double Diode Input Protection
Supply Voltage Range = 3.0 Vdc to 18 Vdc
Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range
Pin-for-Pin Replacement for CD4021B
16 pin DIP. Manufactured by Motorola. A20537
| Additional Resources |
 |
$0.35
